Key Features:
- Digital torque adjustment in 10 ft-lb (10 Nm) increments
- Torque capacity up to 5,000 ft-lbs (7,000 Nm)
- Advanced lithium-ion battery technology for longer life and efficient energy use
- Ideal for pre-torque and service work where power or air is unavailable
- Accuracy of ±5% with repeatability of ±2%
- Also referred to as the B-RAD BL Select Offset (BL = brushless)
Torque Range: 130–5,000 ft-lbs (170–7,000 Nm)

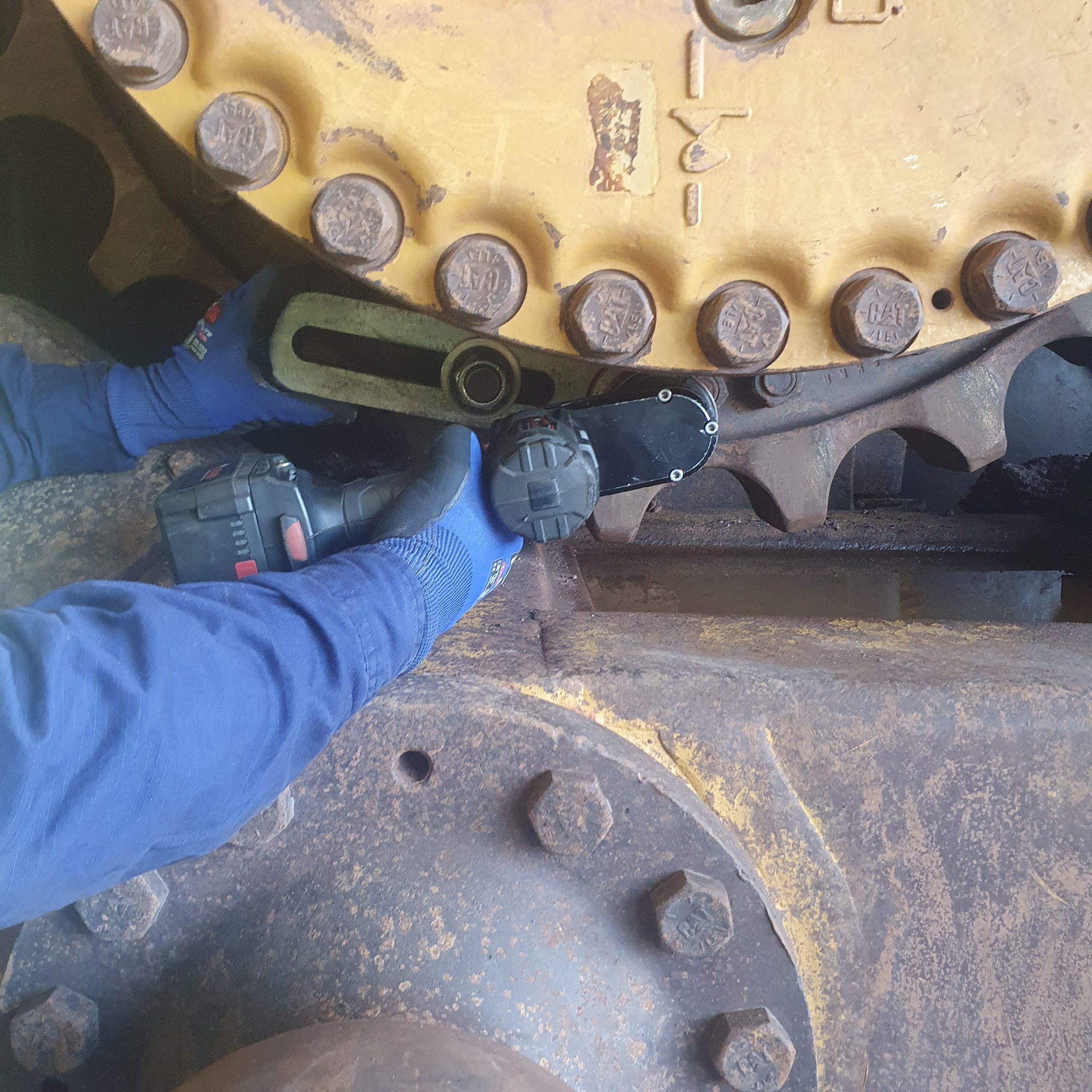

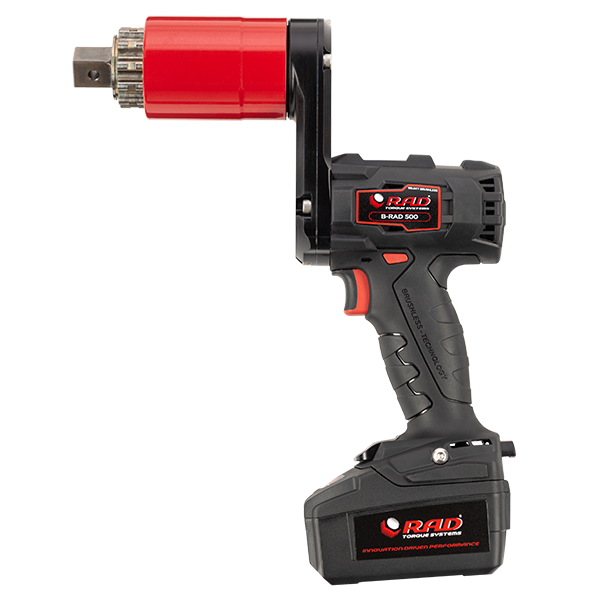

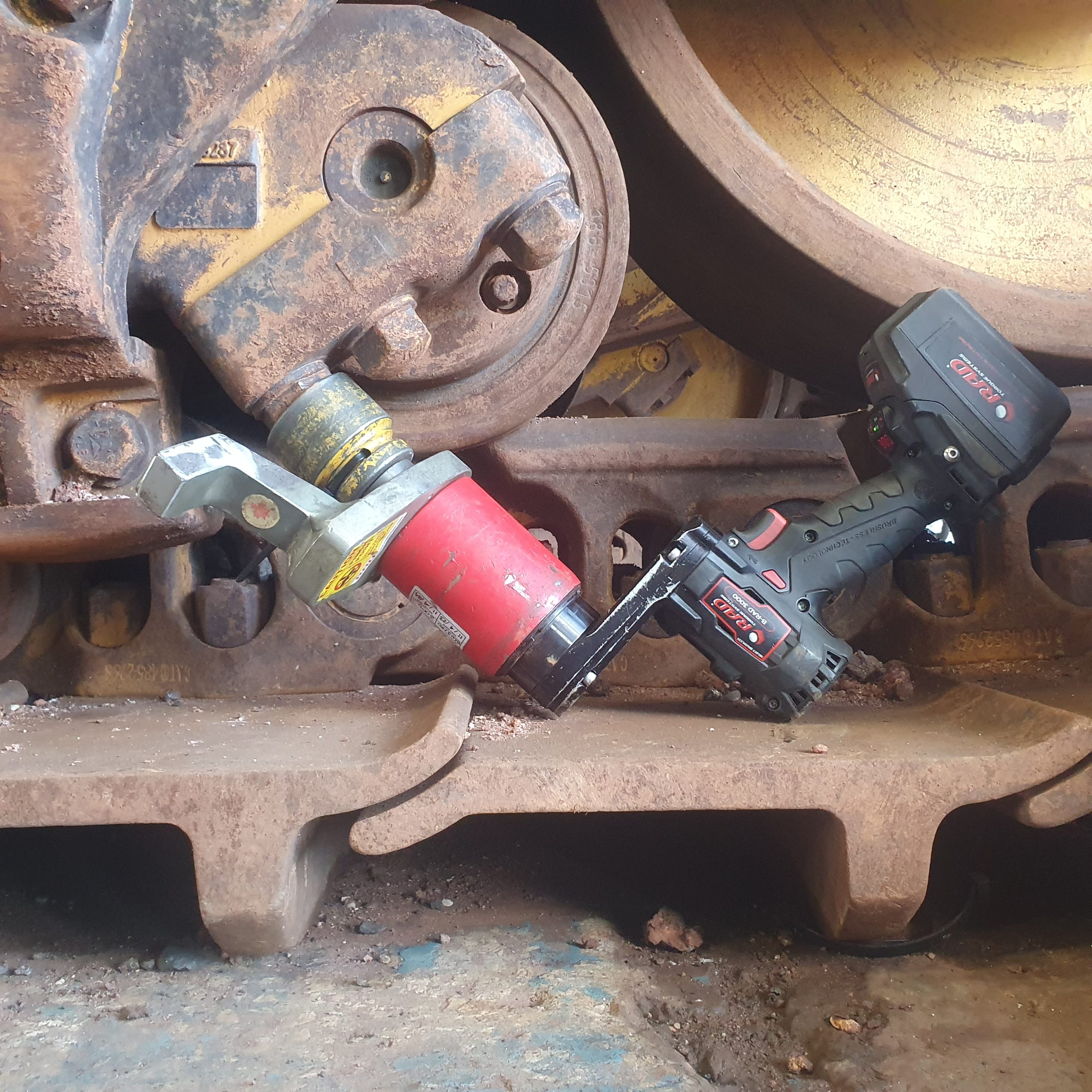

Battery-Powered Torque Wrench with Offset Gearboxes for Confined Spaces

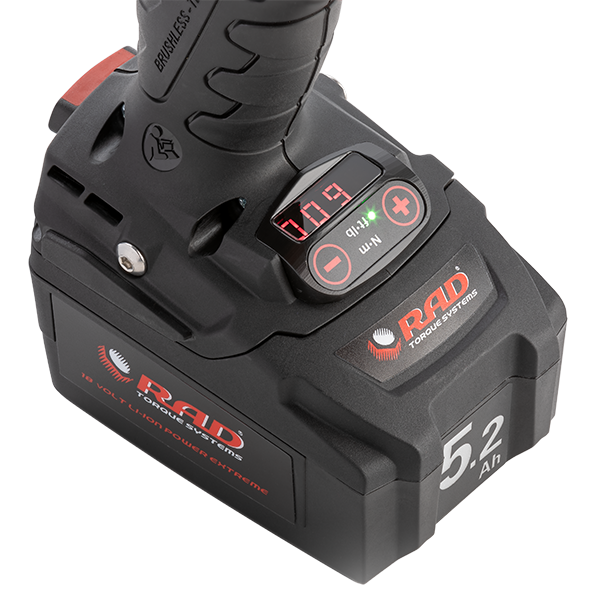

The redesigned B-RAD Select Offset provides enhanced flexibility for tight spaces. Featuring high speed, extended battery life, and a new torque display with easy-to-use buttons, it allows precise selection of target torque. This is a patented tool designed for efficient and accurate operation.
All Battery tool kits will include a reaction arm, 2 batteries, charger and retaining ring in a weatherproof case.
Product overview
Product overview
| Part No. | Imperial Tool Model | Sq Dr | Torque (Ft.lbs) | Torque (NM) | Speed RPM | Weight Kg | Noise Level Dba | Dim. A | Dim. B | Dim. C | Dim. D | Dim. E | Dim. F |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
30002
| B-RAD SELECT OFFSET 500 | ¾” | 130 - 500 | 170 - 700 | 21.5 | 3.9 | 65 | 260 | 155 | 63 | 262 | 83 | 83 |
|
29572
| B-RAD SELECT OFFSET 1000 | ¾” | 200 - 1,000 | 270 - 1,400 | 10.5 | 3.9 | 65 | 260 | 165 | 63 | 262 | 83 | 83 |
|
30004
| B-RAD SELECT OFFSET 1500 | 1” | 300 - 1,500 | 400 - 2,000 | 6 | 4.4 | 65 | 277 | 172 | 69 | 262 | 86 | 83 |
|
30006
| B-RAD SELECT OFFSET 3000 | 1” | 600 - 3,000 | 800 - 4,000 | 3 | 6.4 | 65 | 312 | 208 | 81 | 262 | 92 | 83 |
|
30008
| B-RAD SELECT OFFSET 5000 | 1½” | 1,000 - 5,000 | 1,350 - 7,000 | 2.1 | 9.2 | 65 | 335 | 230 | 95 | 262 | 100 | 83 |
